Bygas Dyse N75 Vågeblus - Zanussi

Vågeblusdyse N75 til bygas

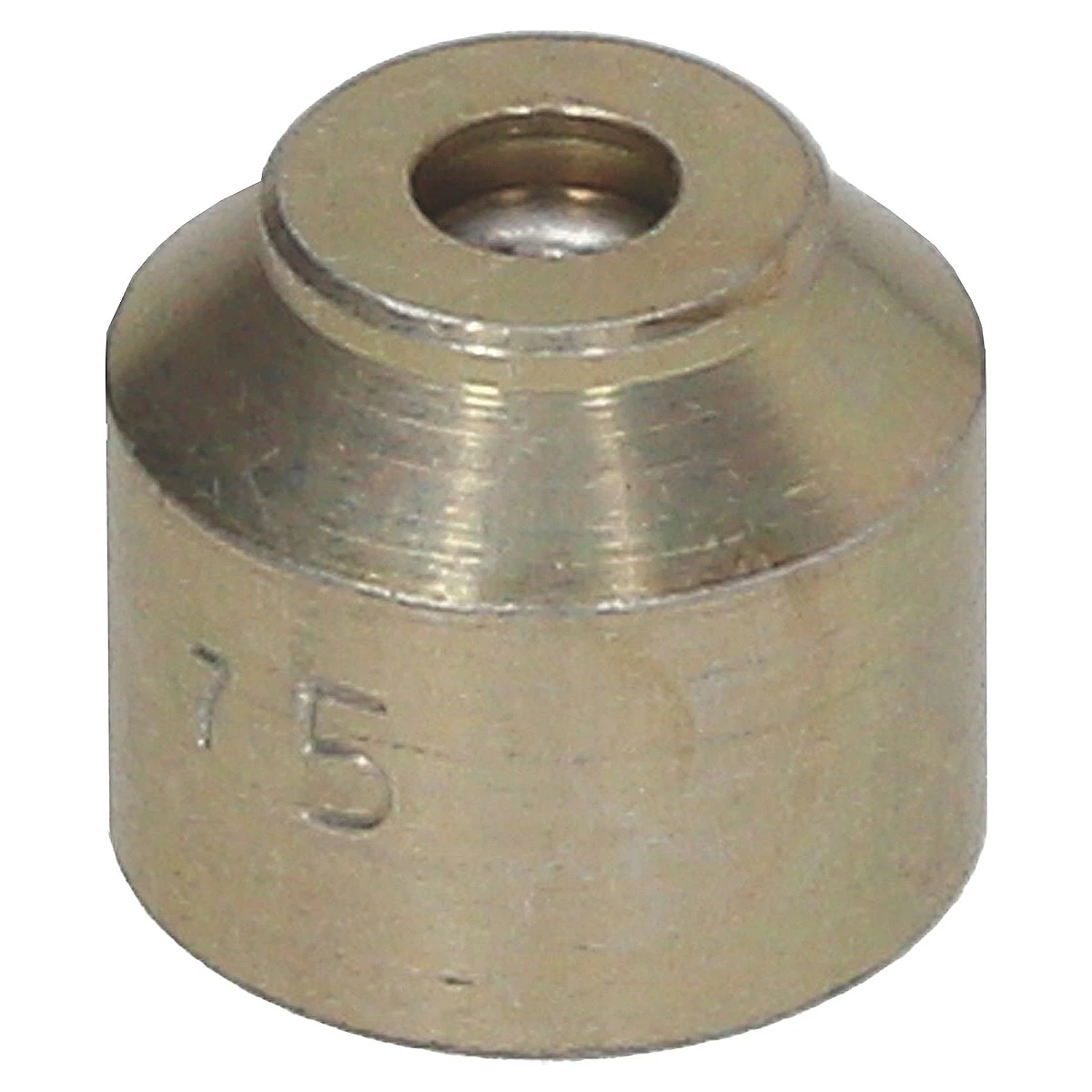

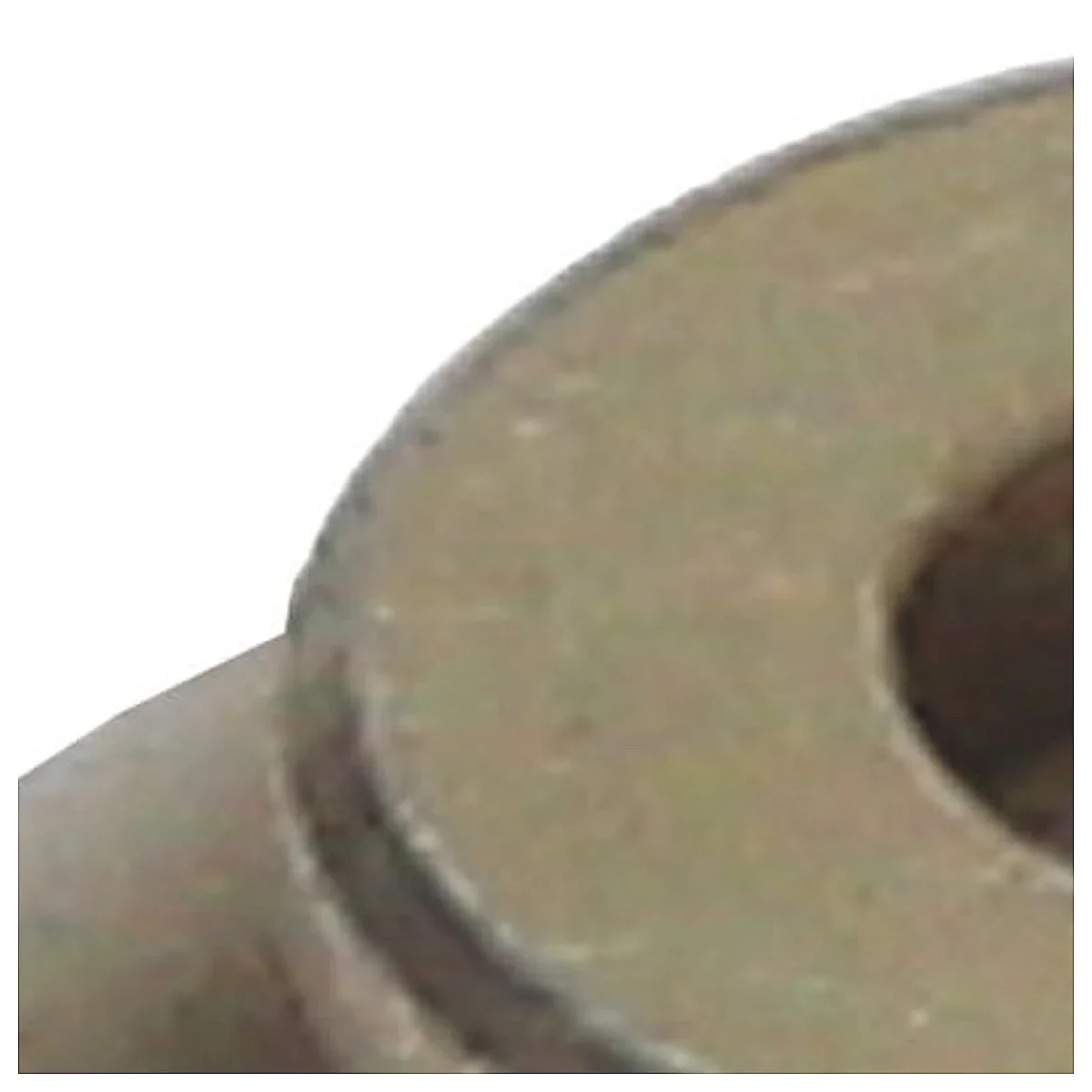

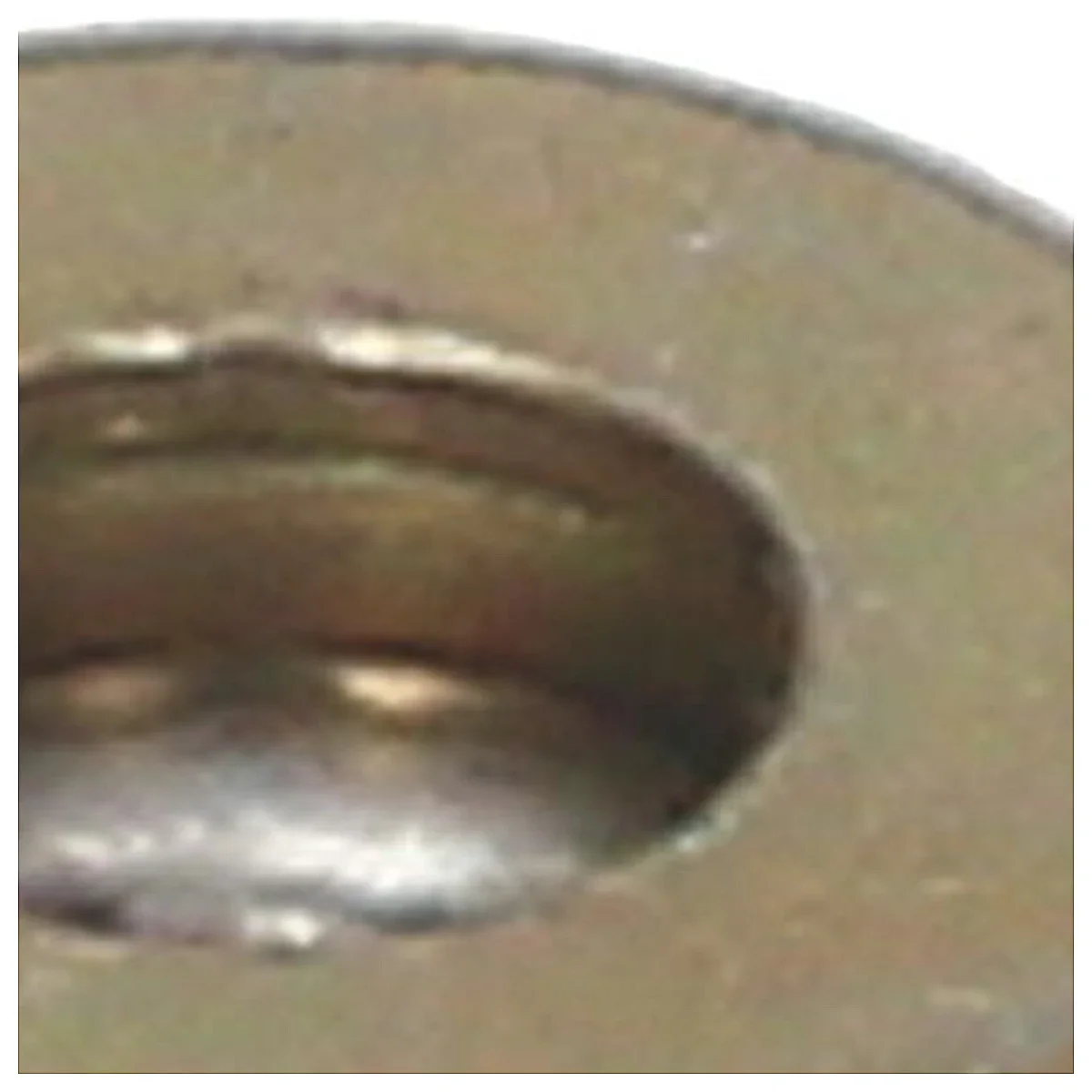

Dysen er den lille messingdel, der doserer gassen til vågeblusset. Boringen er ø 0,75 mm og passer til bygas – en dyse til naturgas eller flaskegas har en anden boring og må ikke bruges i stedet.

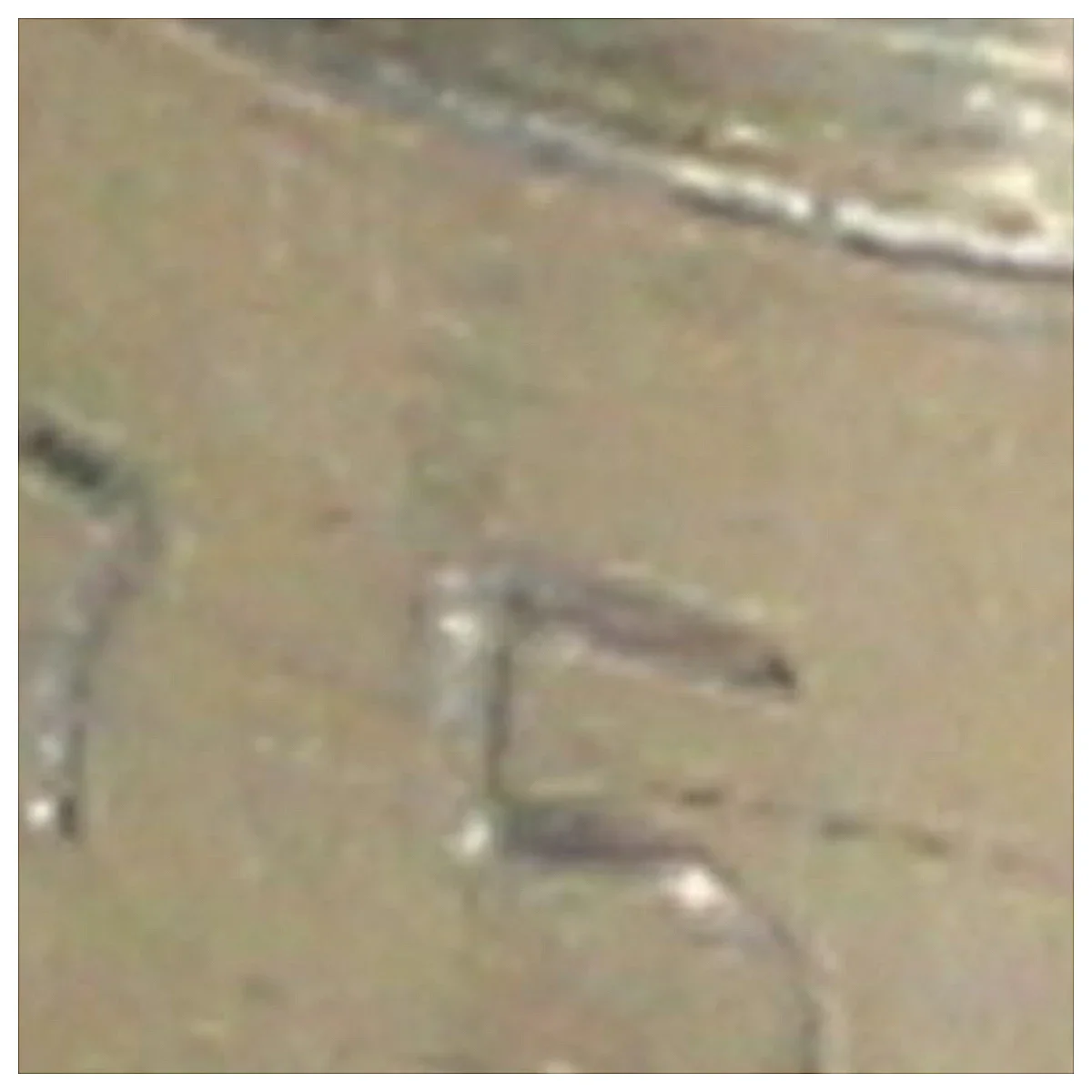

Mærkningen 75 er stemplet i messingen. Det er det tal, du skal sammenligne med, når du finder den gamle dyse frem.

Hvornår skal dysen skiftes

Et vågeblus der bliver gult, lavt eller går ud af sig selv, skyldes næsten altid en tilstoppet dyse. Snavs og korrosion sætter sig i den lille boring.

Rens aldrig boringen med en nål eller ståltråd. Selv en lille ridse ændrer gasmængden, og så bliver flammen forkert bagefter. Skift dysen i stedet.

Tekniske specifikationer

Kompatible modeller

ZANUSSI – Boiling pan: 391293 (E9BSGHIR40)

ZANUSSI – Boiling pan electric: 371094 (E7BSEHINF0), 371095 (E7BSEHINFR), 371252 (E7BSGHIN40), 371253 (E7BSGHIN4R), 371254 (E7BSGHDN40), 372094 (Z7BSEHINF0), 372095 (Z7BSEHINFR), 373094 (A7BSEHINF0), 391118 (E9BSEHIPF0), 391119 (E9BSEHIPFR), 391120 (E9BSEHIRF0), 391121 (E9BSEHIRFR), 391122 (E9BSEHIRFC), 392118 (Z9BSEHIPF0), 392119 (Z9BSEHIPFR), 392120 (Z9BSEHIRF0), 392121 (Z9BSEHIRFR), 392122 (Z9BSEHIRFC), 393118 (A9BSEHIPF0), 393119 (A9BSEHIPFR), 393120 (A9BSEHIRF0), 393121 (A9BSEHIRFR)

ZANUSSI – Boiling pan gas: 178134 (PPD/G260), 178136 (PPI/G260P), 178434 (OPD/G260), 178436 (OPI/G260P), 178734 (TPD/G260), 178736 (TPI/G260P), 371087 (E7BSGHINF0), 371088 (E7BSGHINFR), 371089 (E7BSGHDNF0), 372087 (Z7BSGHINF0), 372088 (Z7BSGHINFR), 372089 (Z7BSGHDNF0), 373087 (A7BSGHINF0), 373089 (A7BSGHDNF0), 391100 (E9BSGHIPF0), 391101 (E9BSGHIPFR), 391102 (E9BSGHIRF0), 391103 (E9BSGHIRFR), 391104 (E9BSGHIRFC), 392100 (Z9BSGHIPF0), 392101 (Z9BSGHIPFR), 392102 (Z9BSGHIRF0), 392103 (Z9BSGHIRFR), 392104 (Z9BSGHIRFC), 393100 (A9BSGHIPF0), 393101 (A9BSGHIPFR), 393102 (A9BSGHIRF0), 393103 (A9BSGHIRFR)

ZANUSSI – Bratt pan: 295003 (HBR/G803), 295004 (HBR/G804), 295006 (HBR/G803), 295008 (HBR/G804), 295009 (HBR/G803), 295012 (HBR/G805), 295013 (HBR/G1003), 295014 (HBR/G1003), 295018 (HBR/G1004), 295051 (HBR/G803), 295052 (HBR/G804), 295057 (HBR/G1013), 2KB03B (HBR/G803), 2KB04B (HBR/G804), 2KB07B (HBR/G1003), 2KB08B (HBR/G1013), 770213 (HBR/G1004)

ZANUSSI – Grill: 178094 (PG/G1), 178196 (PG/G1HV), 178394 (OG/G1), 178395 (OG/G2), 372161 (Z7GRGDLC0H)

ZANUSSI – Kitchen: 372179 (Z7GCGL6CO0), 372216 (Z7GCGI6CLA), 373178 (A7GCGH4CO0), 373179 (A7GCGL6CO0), 373216 (A7GCGI6CLA), 373219 (O7GCGH4CG0), 391259 (E9GCGHTCGA), 391260 (E9GCGHTCGB), 391261 (E9GCGHTCEA), 391262 (E9GCGLTC1A), 391263 (E9GCGLTC1B), 391272 (E9GCGP8CGA), 392259 (Z9GCGHTCGA), 392260 (Z9GCGHTCGB), 392261 (Z9GCGHTCEA), 392262 (Z9GCGLTC1A), 392263 (Z9GCGLTC1B), 392272 (Z9GCGP8SGA)

ZANUSSI – Kitchen electric: 371166 (E7GCGD2C0A), 371167 (E7GCGH4C0A), 371168 (E7GCGH4CGA), 371169 (E7GCGH4CEA), 371170 (E7GCGL6C0A), 371171 (E7GCGL6C1A), 371172 (E7GCGL6C2A), 371216 (E7GCGI6CLA)

ZANUSSI – Kitchen gas: 161059 (MCF/G1090), 162301 (BCF/G2), 168018 (RCF/T2), 168019 (RCF/T3), 168021 (RCF/W2), 168022 (RCF/W3), 168818 (MCF/T2), 168819 (MCF/T3), 168821 (MCF/W2), 168822 (MCF/W3), 171035 (RCF/G1095), 178000 (PC/G1), 178001 (PC/G2), 178002 (PCV/G2), 178003 (PCV/G3), 178004 (PCF/G2), 178005 (PCF/G3), 178006 (PCF/G9), 178007 (PCF/M2), 178008 (PCF/M3), 178038 (PCF/M2E5), 178190 (PCV/G2HV), 178192 (PCF/G3HV), 178193 (PC/G2HV), 178194 (PCV/G3HV), 178195 (PCF/G2HV), 178197 (PC/G1HV), 178300 (OC/G1), 178301 (OC/G2), 178302 (OCV/G2), 178304 (OCF/G2), 178305 (OCF/G3), 178307 (OCF/M2), 178600 (TC/G1), 178601 (TC/G2), 178602 (TCV/G2), 178603 (TCV/G3), 178604 (TCF/G2), 178605 (TCF/G3), 178607 (TCF/M2), 178608 (TCF/M3), 178638 (TCF/M2E5), 200002 (HCF/G810), 200008 (HCF/G810D), 200009 (HCF/G1210D), 200010 (HCF/G1610D), 200013 (HCF/G810NL), 200031 (HCF/G1210), 200033 (HCF/G1610), 200067 (HCF/G810), 200068 (HCF/G1210), 200069 (HCF/G1610), 200100 (KC/G1), 200101 (KC/G2), 200102 (KCF/G2), 200103 (KC/G3), 200104 (KCF/G3), 200105 (KCF/G4), 200106 (KCF/M2), 200113 (KC/T1), 200114 (KC/T2), 200115 (KC/T3), 200116 (KCF/T2), 200117 (KCF/T3), 200118 (KCF/T4), 200121 (KCF/G2H), 200122 (KC/G1H), 200123 (KC/G2H), 200124 (KC/G3H), 200132 (KC/T1H), 200133 (KC/T2H), 200134 (KC/T3H), 200144 (KCF/W2), 200145 (KCF/G3H), 200148 (KCF/G2L), 210002 (ZCF/G810), 210008 (ZCF/G810D), 210009 (ZCF/G1210D), 210010 (ZHCFG1610D), 210031 (ZCF/G1210), 210033 (ZCF/G1610), 210067 (ZCF/G810), 210068 (ZCF/G1210), 210069 (ZCF/G1610), 210100 (QC/G1), 210101 (QC/G2), 210102 (QCF/G2), 210103 (QC/G3), 210104 (QCF/G3), 210105 (QCF/G4), 210106 (QCF/M2), 210113 (QC/T1), 210114 (QC/T2), 210115 (QC/T3), 210116 (QCF/T2), 210117 (QCF/T3), 210118 (QCF/T4), 210121 (QCF/G2H), 210122 (QC/G1H), 210123 (QC/G2H), 210124 (QC/G3H), 210132 (QC/T1H), 210133 (QC/T2H), 210134 (QC/T3H), 210144 (QCF/W2), 220008 (ACF/G810D), 220013 (ACF/G810NL), 220100 (WC/G1), 220101 (WC/G2), 220102 (WCF/G2), 220103 (WC/G3), 220104 (WCF/G3), 220105 (WCF/G4), 220121 (WCF/G2H), 220122 (WC/G1H), 220123 (WC/G2H), 220124 (WC/G3H), 371000 (E7GCGD2C00), 371001 (E7GCGH4C00), 371002 (E7GCGH4CG0), 371003 (E7GCGH4CE0), 371004 (E7GCGL6C00), 371005 (E7GCGL6C10), 371006 (E7GCGL6C20), 371125 (E7GCGH4CEN), 371215 (E7GCGI6CL0), 372000 (Z7GCGD2C00), 372001 (Z7GCGH4C00), 372002 (Z7GCGH4CG0), 372003 (Z7GCGH4CE0), 372004 (Z7GCGL6C00), 372005 (Z7GCGL6C10), 372006 (Z7GCGL6C20), 372125 (Z7GCGH4CEN), 372146 (Z7GCGD2C0A), 372147 (Z7GCGH4C0A), 372148 (Z7GCGH4CGA), 372149 (Z7GCGH4CEA), 372150 (Z7GCGL6C0A), 372151 (Z7GCGL6C1A), 372152 (Z7GCGL6C2A), 372153 (Z7GCGD2C0H), 372154 (Z7GCGH4C0H), 372155 (Z7GCGH4CGH), 372156 (Z7GCGL6C0H), 372157 (Z7GCGL6C1H), 372178 (Z7GCGH4CO0), 373000 (A7GCGD2C00), 373001 (A7GCGH4C00), 373002 (A7GCGH4CG0), 373003 (A7GCGH4CE0), 373004 (A7GCGL6C00), 373005 (A7GCGL6C10), 373125 (A7GCGH4CEN), 391000 (E9GCGD2C00), 391001 (E9GCGD2C0M), 391002 (E9GCGH4C00), 391003 (E9GCGH4C0M), 391004 (E9GCGH4CGL), 391005 (E9GCGH4CG0), 391006 (E9GCGH4CGM), 391007 (E9GCGH4CVL), 391008 (E9GCGH4CV0), 391009 (E9GCGH4CVM), 391010 (E9GCGH4CE0), 391011 (E9GCGL6C00), 391012 (E9GCGL6C0M), 391013 (E9GCGL6C10), 391014 (E9GCGL6C1M), 391015 (E9GCGL6CL0), 391016 (E9GCGL6CLM), 391017 (E9GCGP8CG0), 391164 (E9GCGH4CEN), 391192 (E9GCTD2C0M), 391193 (E9GCTH4C00), 391194 (E9GCTH4C0M), 391195 (E9GCTH4CEM), 391196 (E9GCTL6C0M), 392000 (Z9GCGD2S00), 392001 (Z9GCGD2S0M), 392002 (Z9GCGH4S00), 392003 (Z9GCGH4S0M), 392004 (Z9GCGH4SGL), 392005 (Z9GCGH4SG0), 392006 (Z9GCGH4SGM), 392007 (Z9GCGH4SVL), 392008 (Z9GCGH4SV0), 392009 (Z9GCGH4SVM), 392010 (Z9GCGH4SE0), 392011 (Z9GCGL6S00), 392012 (Z9GCGL6S0M), 392013 (Z9GCGL6S10), 392014 (Z9GCGL6S1M), 392015 (Z9GCGL6SL0), 392017 (Z9GCGP8SG0), 392025 (Z9GCGD2C00), 392026 (Z9GCGD2C0M), 392027 (Z9GCGH4C00), 392028 (Z9GCGH4C0M), 392029 (Z9GCGH4CGL), 392030 (Z9GCGH4CG0), 392031 (Z9GCGH4CGM), 392032 (Z9GCGH4CE0), 392033 (Z9GCGL6C00), 392034 (Z9GCGL6C0M), 392035 (Z9GCGL6C10), 392036 (Z9GCGL6C1M), 392037 (Z9GCGL6CL0), 392038 (Z9GCGP8CG0), 392164 (Z9GCGH4CEN), 392192 (Z9GCTD2Y0M), 392193 (Z9GCTH4Y00), 392194 (Z9GCTH4Y0M), 392195 (Z9GCTH4YEM), 392196 (Z9GCTL6Y0M), 392216 (Z9GCGH4CVL), 392217 (Z9GCGH4CV0), 392218 (Z9GCGH4CVM), 393000 (A9GCGD2C00), 393001 (A9GCGD2C0M), 393002 (A9GCGH4C00), 393003 (A9GCGH4C0M), 393005 (A9GCGH4CG0), 393006 (A9GCGH4CGM), 393010 (A9GCGH4CE0), 393011 (A9GCGL6C00), 393012 (A9GCGL6C0M), 393013 (A9GCGL6C10), 393017 (A9GCGP8CG0)

ZANUSSI – Lava rock grill gas: 168113 (RG/T1), 168114 (RG/T2), 168115 (RGV/T1), 168116 (RGV/T2), 168913 (MG/T1), 168914 (MG/T2), 168915 (MGV/T1), 168916 (MGV/T2), 178095 (PG/G2), 178200 (PG/G2HV), 178694 (TG/G1), 178695 (TG/G2), 371044 (E7GRGDLC00), 371045 (E7GRGHLC00), 372044 (Z7GRGDLC00), 372045 (Z7GRGHLC00), 372162 (Z7GRGHLC0H), 373044 (A7GRGDLC00), 373045 (A7GRGHLC00)

ZANUSSI – Neutral counter: 205001 (HFS/G800), 215001 (ZFS/G800)

ZANUSSI – Pasta cooker: 204002 (HCP/G410D), 204005 (HCP/G400), 204006 (HCP/G410), 204007 (HCP/G800), 204008 (HCP/G810), 204025 (HCPS/G400), 214005 (ZCP/G400), 214006 (ZCP/G410), 214007 (ZCP/G800), 214008 (ZCP/G810), 214025 (ZCPS/G400)

ZANUSSI – Pot stove gas: 168014 (RC/T1), 168015 (RC/T2), 168016 (RCV/T2), 168017 (RCV/T3), 168814 (MC/T1), 168815 (MC/T2), 168816 (MCV/T2), 168817 (MCV/T3), 210145 (QCF/G3H), 210148 (QCF/G2L), 372215 (Z7GCGI6CL0), 391264 (E9STGH10GA), 391265 (E9STGLT01A), 392016 (Z9GCGL6SLM), 392265 (Z9STGLT01A)

ZANUSSI – Solid top range: 178081 (PTV/G2), 178082 (PTF/G2), 178083 (PSF/G2), 178084 (PSV/G2), 178085 (PSF/G3), 178201 (PTV/G2N), 178381 (OTV/G2), 178382 (OTF/G2), 178383 (OSF/G2), 178384 (OSV/G2), 178681 (TTV/G2), 178682 (TTF/G2), 178683 (TSF/G2), 178684 (TSV/G2), 178685 (TSF/G3), 200230 (KS/G2), 200231 (KSF/G2), 200232 (KSCF/G3), 202518 (HTF/G810), 202519 (HTF/G800D), 202522 (HTF/G1210), 202523 (HTF/G1210D), 202525 (HTF/G800NL), 202526 (HTFG1210NL), 210230 (QS/G2), 210231 (QSF/G2), 210232 (QSCF/G3), 212518 (ZTF/G810), 212519 (ZTF/G800D), 212522 (ZTF/G1210), 212523 (ZTF/G1210D), 220230 (WS/G2), 220231 (WSF/G2), 220232 (WSCF/G3), 222519 (ATF/G800D), 222522 (ATF/G1210), 222523 (ATF/G1210D), 222525 (ATF/G800NL), 222526 (ATFG1210NL), 371007 (E7STGH1000), 371008 (E7STGH10G0), 371009 (E7STGH30G0), 371010 (E7STGL3010), 371011 (E7STGH3000), 371012 (E7STGL5000), 371217 (E7STGH10GA), 371218 (E7STGL301A), 372007 (Z7STGH1000), 372008 (Z7STGH10G0), 372009 (Z7STGH30G0), 372010 (Z7STGL3010), 372011 (Z7STGH3000), 372012 (Z7STGL5000), 372160 (Z7STGH100H), 373007 (A7STGH1000), 373008 (A7STGH10G0), 373009 (A7STGH30G0), 373010 (A7STGL3010), 373011 (A7STGH3000), 391018 (E9STGH1000), 391019 (E9STGH10G0), 391020 (E9STGH30G0), 391021 (E9STGL3010), 391215 (E9STGL3C30), 392018 (Z9STGH1000), 392019 (Z9STGH10G0), 392020 (Z9STGH30G0), 392021 (Z9STGL3010), 392215 (Z9STGL3C30), 392264 (Z9STGH10GA), 393018 (A9STGH1000), 393019 (A9STGH10G0), 393021 (A9STGL3010)

Modellisten er lang, fordi den samme SIT-vågeblusdyse sidder i næsten hele Zanussi-gasprogrammet. Kontrollér altid gastype og stempling på den gamle dyse.

Sikkerhed ved gasarbejde

Arbejde på gasinstallationer skal udføres af en autoriseret VVS-installatør. Luk for gassen ved hovedhanen før dysen skiftes.

Efter montering skal samlingen tæthedsprøves med sæbevand eller lækagespray, og flammebilledet kontrolleres: vågeblusset skal brænde roligt og blåt med en spids der rammer termoelementet.
